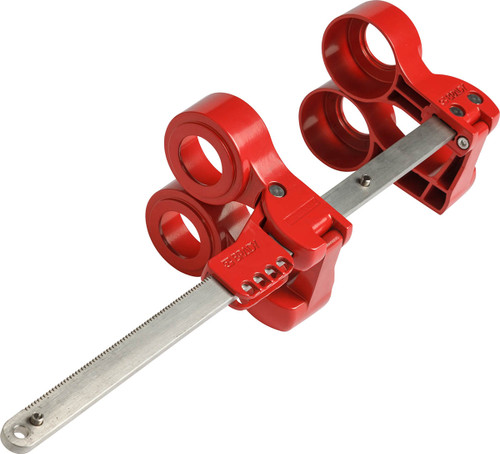

This pipe blind flange lockout device adds an extra level of security with an adjustable locking arm to help ensure that the pipe blind cannot be removed during maintenance.
| Part Number | 149229 |
| Product Number | 149229 |
| UPC | 754473599539 |
| UOM | Each |
| Brand Name | Brady |
| Application | Lockout Tagout |
| Approval/Compliance (EMEA) | OSHA 29 CFR 1910.147 |
| Brady Material Number | LOTO-90 |
| Color | Red |
| Dimensions (imperial) | 17.6 in H x 5 in W |
| Dimensions (metric) | 127,00 mm (W) x 447,04 mm (H) |
| Enables Industry Compliance (North America) | OSHA 29 CFR 1910.147 |
| Gate Valve Lockout Type | Two-Piece Adjustable |
| Height (imperial) | 17.6 in |
| Height (metric) | 447.04 mm |
| Hole Inside Diameter (imperial) | 1.31 in |
| Hole Inside Diameter (metric) | 33.27 mm |
| Industry | Beverage processing, Chemical, Automotive, Construction, Energy utilities, Food processing, Manufacturing, Oil & gas, Process, Pulp & paper |
| Labels Supplied | No |
| Material | Aluminum/Steel |
| Maximum Number of Padlocks | 4 |
| Maximum Nut Diameter (imperial) | 2.25 in |
| Maximum Nut Diameter (metric) | 57.00 mm |
| Maximum Service Temperature (°C) | 90 °C |
| Maximum Service Temperature (°F) | 194 °F |
| Maximum Shackle Diameter (imperial) | 0.28 in |
| Maximum Shackle Diameter (metric) | 7.00 mm |
| Minimum Service Temperature (°C) | -40 °C |
| Minimum Service Temperature (°F) | -40 °F |
| Minimum Shackle Clearance (imperial) | 0.75 in |
| Minimum Shackle Clearance (metric) | 19.05 mm |
| Pipe Flange Thickness Range (imperial) | 3.6 -11.25 in |
| Pipe Flange Thickness Range (metric) | 95.00 - 286.00 mm |
| Primary Noun, Basic Function.1 | Lockout Device |
| Recommended Nut Diameter (imperial) | 0.9 - 1.25 in |
| Recommended Nut Diameter (metric) | 23.00 - 32.00 mm |
| Risk Type | Mechanical Risk |
| SAP B-Number | LOTO-90 |
| SAP Local Description | Pipe Blind Lockout-2 Bolt Sec.3-1/2-14 inD |
| Service Temperature Range (°C) | -40 °C - 90 °C |
| Service Temperature Range (°F) | -40 °F - 194 °F |
| Valve Wheel Diameter Range (imperial) | 3 - 14 in |
| Valve Wheel Diameter Range (metric) | 76.20 - 355.60 mm |
| Width (imperial) | 5 in |
| Width (metric) | 127.00 mm |
| Contains CA PROP 65 Substance | No - Does not contain |
| Contains CA PROP 65 Substance (Y/N) | N |
| Contains Heavy Metal(s) | No - Does not contain |
| DOT Hazardous Material | No = is not a DOT hazardous material |
| EU RoHS Compliance | Not Applicable |
| EU RoHS Compliant | No |
| SDS Safety Data Sheet required | No = MSDS/SDS is not required |
