Self-sticking pipe markers from Brady® simplify installation with their factory-applied industrial-grade adhesives: simply peel off the backing and press the marker in place.
| Part Number | 7229-3C-PK |
| Product Number | 172881 |
| UPC | 888434583180 |
| UOM | Pack of 5 Cards |
| Brand Name | Brady |
| Adhesive Type | Permanent Acrylic |
| Application | Pipe and Valve Marking |
| Arrow Direction | Directional |
| Average Outdoor Durability | 8 to 10 Years |
| Brady Material Number | B-946 |
| Cards or Sheets per Pack | 5 |
| Character Height (imperial) | 0.3 in |
| Character Height (metric) | 7.62 mm |
| Class | Water |
| Color | White on Green |
| Compatible Surface Types | General |
| Country | US, CA, MX |
| Dimensions (imperial) | 2.25 in H x 2.75 in W |
| Dimensions (metric) | 69,85 mm (W) x 57,15 mm (H) |
| Enables Industry Compliance (North America) | ANSI A13.1 |
| Finish | Gloss |
| Height (imperial) | 2.25 in |
| Height (metric) | 57.15 mm |
| Indoor or Outdoor Use | Outdoor Use |
| Material | Vinyl |
| Material Type | Vinyl |
| Maximum Pipe Diameter (imperial).1 | 0.75 in |
| Maximum Pipe Diameter (metric) | 19.05 mm |
| Maximum Service Temperature (°C) | 82 °C |
| Maximum Service Temperature (°F) | 180 °F |
| Minimum Application Temperature (°C) | -18 °C |
| Minimum Application Temperature (°F) | 0 °F |
| Minimum Pipe Diameter (imperial).1 | 0.25 in |
| Minimum Pipe Diameter (metric) | 6.35 mm |
| Minimum Service Temperature (°C) | -40 °C |
| Minimum Service Temperature (°F) | -40 °F |
| Pipe Diameter Range (imperial) | 0.25 - 0.75 in |
| Pipe Diameter Range (metric) | 6.35 - 19.05 mm |
| Pipe Marker Mounting Style | Self-Adhesive |
| Pipe Marker Style | 3C |
| Pre-Printed Areas on Label | Arrows |
| Primary Noun, Basic Function.1 | Pipe Marker |
| Printer supply or Pre-printed | Pre-printed |
| Quantity per Card or Sheet | 3 |
| Resistance Properties | Abrasion-resistant, Chemical-resistant, Weather-resistant |
| SAP B-Number | B-946 |
| SAP Local Description | B946 7229-3C WHT/GRN STY-3C PK |
| Self-Adhesive Pipe Marker Format | Die-Cut on Cards |
| Service Temperature Range (°C) | -40 °C - 82 °C |
| Service Temperature Range (°F) | -40 °F - 180 °F |
| Text Language | English |

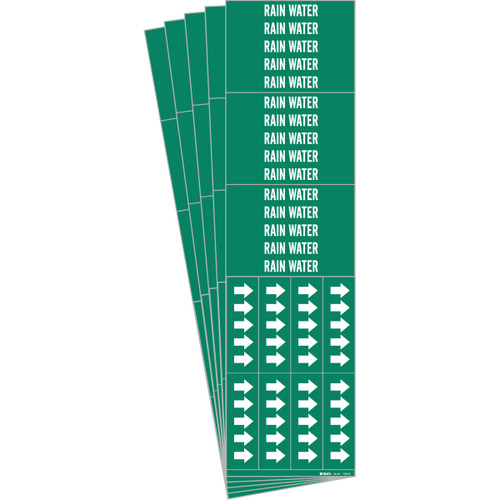

| Text Legend | RAIN WATER |
| Thickness (imperial) | 0.004 in |
| Thickness (metric) | 0.102 mm |
| Width (imperial) | 2.75 in |
| Width (metric) | 69.85 mm |
| Contains CA PROP 65 Substance | Yes Contains-Label not req. |
| Contains CA PROP 65 Substance (Y/N) | N |
| Contains Heavy Metal(s) | No - Does not contain |
| DOT Hazardous Material | No = is not a DOT hazardous material |
| EU RoHS Compliance | Pass 2011/65/EU(Pass 2015/863) |
| EU RoHS Compliant | Yes |
| SDS Safety Data Sheet required | No = MSDS/SDS is not required |
