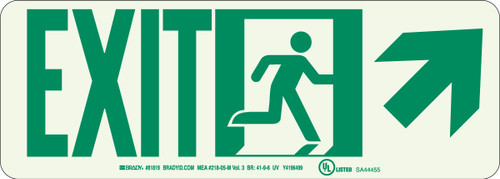

BradyGlo™ High intensity laminate (B-523) is a glow-in-the-dark polyester film coated with an aggressive pressure sensitive adhesive.
| Part Number | 81819 |
| Product Number | 81819 |
| UPC | 754473818197 |
| UOM | Pack of 10 Each |
| Brand Name | Brady |
| Adhesive Type | Permanent Synthetic Rubber |
| Application | Facility Identification, Exit and Egress Marking |
| Approval/Compliance (EMEA) | UL 1994 Compliant, New York Local Law 26 RS 6-1 & 6-1A, City of New York, Department of Buildings MEA No. 218-05 Vol3 BR, 41-9-6 UV |
| Brady Material Number | B-523 |
| Calculated Sign Shape | Horizontal Rectangle |
| Color | Green on Glow |
| Compatible Surface Types | Low Surface Energy |
| Corner Type | Square |
| Dimensions (imperial) | 5 in H x 14 in W |
| Dimensions (metric) | 355,60 mm (W) x 127,00 mm (H) |
| Finish | Gloss |
| Height (imperial) | 5 in |
| Height (metric) | 127.00 mm |
| Illumination | Glow in the Dark |
| Image or Text | Image & Text |
| Industry Compliance UL | UL1994 |
| Layout | Landscape |
| Material | Phosphorescent Polyester |
| Material Properties | Explosion-safe, Photoluminescent |
| Material Type | Polyester |
| Maximum Service Temperature (°C) | 80 °C |
| Maximum Service Temperature (°F) | 176 °F |
| Minimum Application Temperature (°C) | 10 °C |
| Minimum Application Temperature (°F) | 50 °F |
| Minimum Service Temperature (°C) | -40 °C |
| Minimum Service Temperature (°F) | -40 °F |
| Pictogram Description | Exit Right Symbol |
| Primary Noun, Basic Function.1 | Sign |
| Printer supply or Pre-printed | Pre-printed |
| SAP B-Number | B-523 |
| SAP Local Description | NYC 5X14 EXIT+ARROW UP-RGHT 10/PK UL1994 |
| Service Temperature Range (°C) | -40 °C - 80 °C |
| Service Temperature Range (°F) | -40 °F - 176 °F |
| Shape | Rectangle |
| Sign Size-General (imperial) | 5 in x 14 in |
| Sign Type | Admittance and Exit |
| Text Language | English |
| Text Legend | EXIT |
| Thickness (imperial) | 0.0094 in |
| Thickness (metric) | 0.239 mm |
| Trade Name | BradyGlo |
| Width (imperial) | 14 in |
| Width (metric) | 355.60 mm |
| Contains CA PROP 65 Substance | Yes Contains-Label not req. |
| Contains CA PROP 65 Substance (Y/N) | N |
| DOT Hazardous Material | No = is not a DOT hazardous material |
| SDS Safety Data Sheet required | No = MSDS/SDS is not required |
