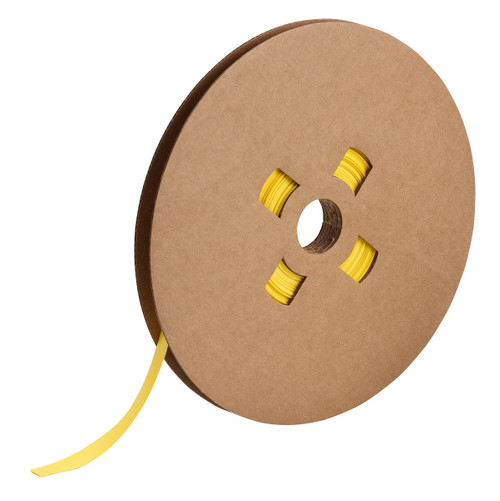

Heat-Shrink PermaSleeve® HX Polyolefin (B-7642) Wire Marking Sleeves are 2:1 heat shrinkable, high-temperature rated, highly flame retardant and very flexible.
| Part Number | HX-C-375-YL-J |
| Product Number | 131343 |
| UPC | 662820997702 |
| UOM | Roll of 150 ft |
| Brand Name | Brady |
| Application | Wire and Cable Labeling |
| Brady Material Number | B-7642 |
| Bulk Part | Bulk Part |
| Color | Yellow |
| Continuous or Die-cut | Continuous |
| Core Diameter (imperial) | 1.625 in |
| Core Diameter (metric) | 41.28 mm |
| Diameter as Supplied (imperial) | 0.375 in |
| Diameter as Supplied (metric) | 9.53 mm |
| Dimensions (imperial) | 0.645 in H x 150 ft L |
| Dimensions (metric) | 16,38 mm (H) x 45,72 m (L) |
| Enables Industry Compliance (North America) | 2005/618/EC MCV, Method 215K, MIL-DTL-23053/5 Class 1, MIL-STD-202, RoHS Compliant, UL 224, VW-1 |
| Finish | Matte |
| Height (imperial) | 0.645 in |
| Height (metric) | 16.38 mm |
| Industry Compliance MIL_STD | MIL-STD-202G, Method 215K |
| Industry Compliance UL | UL224 |
| Label Properties | Heat Shrink |
| Length (imperial) | 150 ft |
| Length (metric) | 45.72 m |
| Material | Heat-shrink Polyolefin |
| Material Properties | Heat-shrinkable |
| Material Type | Polyolefin |
| Maximum Service Temperature (°C) | 120 °C |
| Maximum Service Temperature (°F) | 248 °F |
| Maximum Wire Diameter (imperial) | 0.32 in |
| Maximum Wire Diameter (metric) | 8.13 mm |
| Maximum Wire Gauge | 4 AWG |
| Minimum Service Temperature (°C) | -40 °C |
| Minimum Service Temperature (°F) | -40 °F |
| Minimum Wire Diameter (imperial) | 0.188 in |
| Minimum Wire Diameter (metric) | 4.78 mm |
| Minimum Wire Gauge | 8 AWG |
| Primary Noun, Basic Function.1 | Sleeve |
| Print Technology | Thermal Transfer |
| Printable Sides | Single-Side Printable |
| Printer Compatibility | BBP72, i7100, i7500, THT 3 in Core Printers |
| Printer and Label Applications | Wire & Cable |
| Printer supply or Pre-printed | Printer supply |
| Recommended Ribbon | i75-R6406, R6406 |
| Recommended Ribbon Series | R4300, R6000HF, R6600 |
| Recovered Diameter (imperial) | 0.187 in |
| Recovered Diameter (metric) | 4.75 mm |
| Recovered Wall Thickness (imperial) | 0.025 in |
| Recovered Wall Thickness (metric) | 0.64 mm |
| Resistance Properties | Chemical-resistant, Self-Extinguishing, Smear-resistant |
| Ribbon Series | R6600 |
| Roll Length (imperial) | 150 ft |
| Roll Length (metric) | 45.72 m |
| SAP B-Number | B-7642 |
| SAP Local Description | HX-C-375-YL-J |
| Service Temperature Range (°C) | -40 °C - 120 °C |
| Service Temperature Range (°F) | -40 °F - 248 °F |
| Shrink Ratio | 2:1 |
| Sleeve Size (imperial) | 0.375 in Dia x 150 ft L |
| Sleeve Size (metric) | 9.53 mm Dia x 45.72 m L |
| Smart Cell | No |
| Trade Name | PermaSleeve |
| Wire Diameter Range (imperial) | 0.188 in to 0.32 in |
| Wire Diameter Range (metric) | 4.78 mm to 8.13 mm |
| Wire Gauge Range | 8 AWG - 4 AWG |
| CA Prop 65 Label Warning | WARNING: Cancer - www.P65warnings.ca.gov |
| CA Prop 65 Labeled? | Y |
| Contains CA PROP 65 Substance | Yes Contains-Label required |
| Contains CA PROP 65 Substance (Y/N) | Y |
| Contains CA PROP 65 Warning Type | Cancer |
| Contains Heavy Metal(s) | No - Does not contain |
| DOT Hazardous Material | No = is not a DOT hazardous material |
| EU RoHS Compliance | Pass 2011/65/EU(Pass 2015/863) |
| EU RoHS Compliant | Yes |
| SDS Safety Data Sheet required | No = MSDS/SDS is not required |
