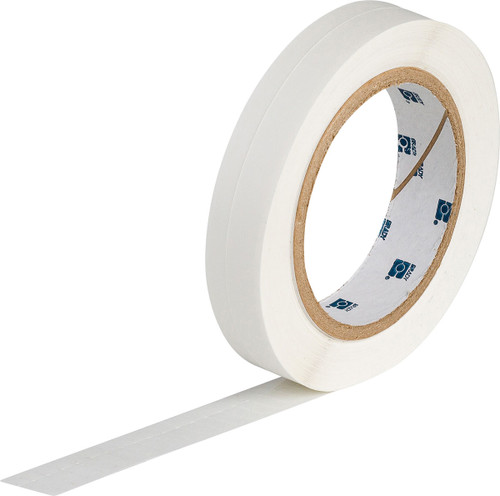

This B-103 clear polyester material is a general purpose overlaminate that withstands high temperatures, dirt, oil and cleaning solvents while displaying excellent clarity.
| Part Number | LAM-1-103 |
| Product Number | 16100 |
| UPC | 662820161004 |
| UOM | Roll of 5000 Labels |
| Brand Name | Brady |
| Adhesive Type | Permanent Acrylic |
| Application | Circuit Board Labeling |
| Brady Material Number | B-103 |
| Color | Clear |
| Compatible Surface Types | High Surface Energy |
| Continuous or Die-cut | Die-cut |
| Core Diameter (imperial) | 3 in |
| Core Diameter (metric) | 76.20 mm |
| Corner Type | Rounded |
| Dimensions (imperial) | 0.2 in H x 0.65 in W |
| Dimensions (metric) | 16,51 mm (W) x 5,08 mm (H) |
| Enables Industry Compliance (North America) | ASTM B 117, ASTM D 1000, ASTM D 2979, ASTM G 155 |
| Finish | Gloss |
| Height (imperial) | 0.2 in |
| Height (metric) | 5.08 mm |
| Label Properties | Harsh Environment, Heat Resistant, Permanent Adhesive |
| Label/Tape Size (imperial) | 0.2 in H x 0.65 in W |
| Label/Tape Size (metric) | 5.08 mm H x 16.51 mm W |
| Material | Polyester Overlaminate |
| Material Properties | Optically Clear, Overlaminate |
| Material Type | Polyester |
| Maximum Service Temperature (°C) | 130 °C |
| Maximum Service Temperature (°F) | 266 °F |
| Minimum Application Temperature (°C) | 10 °C |
| Minimum Application Temperature (°F) | 50 °F |
| Minimum Service Temperature (°C) | -70 °C |
| Minimum Service Temperature (°F) | -94 °F |
| Primary Noun, Basic Function.1 | Label |
| Print Technology | Thermal Transfer |
| Printer and Label Applications | General Identification |
| Printer supply or Pre-printed | Printer supply |
| Quantity per Roll | 5000 |
| Quantity per Row | 1 |
| Resistance Properties | Chemical-resistant, Corrosion-resistant, Humidity-resistant, UV-resistant, Weather-resistant |
| SAP B-Number | B-103 |
| SAP Local Description | LAM-1-103 |
| Service Temperature Range (°C) | -70 °C - 130 °C |
| Service Temperature Range (°F) | -94 °F - 266 °F |
| Shape | Rectangle |
| Smart Cell | No |
| Thickness (imperial) | 0.0025 in |
| Thickness (metric) | 0.064 mm |
| Total Quantity | 5000 |
| Vertical Repeat (imperial) | 0.262 in |
| Vertical Repeat (metric) | 6.65 mm |
| Web Width (imperial) | 0.85 in |
| Web Width (metric) | 21.59 mm |
| Width (imperial) | 0.65 in |
| Width (metric) | 16.51 mm |
| Contains CA PROP 65 Substance | No - Does not contain |
| Contains CA PROP 65 Substance (Y/N) | N |
| Contains Heavy Metal(s) | Unavailable |
| DOT Hazardous Material | No = is not a DOT hazardous material |
| EU RoHS Compliance | Pass 2011/65/EU(Pass 2015/863) |
| EU RoHS Compliant | Yes |
| SDS Safety Data Sheet required | No = MSDS/SDS is not required |
