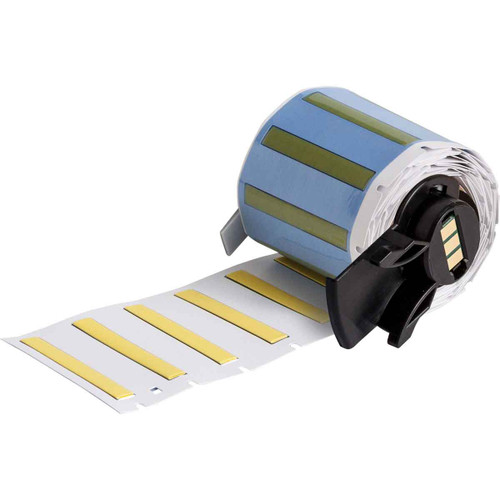

PermaSleeve® High Temp Wire Marking Heat Shrink Labels (B-345) are specifically designed for high temperature and low vacuum outgassing applications.
| Part Number | M6-125-175-345-YL |
| Product Number | 173553 |
| UPC | 888434594728 |
| UOM | Roll of 100 Each |
| Brand Name | Brady |
| Application | Wire and Cable Labeling |
| Approval/Compliance (EMEA) | NASA SP-R-0022A Outgassing Performance, SAE-AMS-DTL-23053/18 (Class 2), SAE AS-81531, MIL-STD-202 Method 215K |
| Average Outdoor Durability | 2 Years |
| Brady Material Number | B-345 |
| Color | Yellow |
| Continuous or Die-cut | Die-cut |
| Diameter as Supplied (imperial) | 0.125 in |
| Diameter as Supplied (metric) | 3.18 mm |
| Dimensions (imperial) | 0.235 in H x 1.75 in W |
| Dimensions (metric) | 44,45 mm (W) x 5,97 mm (H) |
| Enables Industry Compliance (North America) | ASTM D 2671, ASTM E 162, ASTM E 662, ASTM G 155, MIL-STD-202, SAE-AMS-DTL-23053, SAE-AS-81531, UL Recognized |
| Finish | Matte |
| Height (imperial) | 0.235 in |
| Height (metric) | 5.97 mm |
| Indoor or Outdoor Use | Outdoor Use |
| Industry Compliance MIL_STD | MIL-STD-202G, Method 215K |
| Label Properties | Heat Shrink |
| Material | High Temperature Heat-shrink Polyvinylidene Fluoride Sleeve |
| Material Properties | Flame-retardant, Heat-shrinkable |
| Material Type | Polyvinylidene |
| Max. Lines of Text | 1 |
| Maximum Characters per Line | 41 |
| Maximum Service Temperature (°C) | 225 °C |
| Maximum Service Temperature (°F) | 437 °F |
| Maximum Wire Diameter (imperial) | 0.11 in |
| Maximum Wire Diameter (metric) | 2.79 mm |
| Maximum Wire Gauge | 16 AWG |
| Minimum Service Temperature (°C) | -55 °C |
| Minimum Service Temperature (°F) | -67 °F |
| Minimum Wire Diameter (imperial) | 0.063 in |
| Minimum Wire Diameter (metric) | 1.60 mm |
| Minimum Wire Gauge | 20 AWG |
| Primary Noun, Basic Function.1 | Sleeve |
| Print Technology | Thermal Transfer |
| Printable Sides | Single-Side Printable |
| Printer Compatibility | M610, M611, M710 (with media adapter), BMP61, BMP71 (with media adapter) |
| Printer and Label Applications | Wire & Cable |
| Printer supply or Pre-printed | Printer supply |
| Quantity per Roll | 100 |
| Quantity per Row | 1 |
| Recommended Ribbon | M61-R6010, M7-R6000 |
| Recommended Ribbon Series | R4400W, R6000HF, R6600, R6800 |
| Recovered Diameter (imperial) | 0.063 in |
| Recovered Diameter (metric) | 1.60 mm |
| Resistance Properties | Chemical-resistant, Corrosion-resistant, High Temperature-resistant, Humidity-resistant, UV-resistant, Weather-resistant |
| Ribbon Series | R6000HF, R6600 |
| Roll Width (imperial) | 1.75 in |
| Roll Width (metric) | 44.45 mm |
| SAP B-Number | B-345 |
| SAP Local Description | M6-125-175-345-YL |
| Service Temperature Range (°C) | -55 °C - 225 °C |
| Service Temperature Range (°F) | -67 °F - 437 °F |
| Shrink Ratio | 2:1 (3:1 for 0.094 in Dia) |
| Sleeve Size (imperial) | 0.125 in Dia x 1.75 in W |
| Sleeve Size (metric) | 3.18 mm Dia x 44.45 mm W |
| Sleeve Slits | No |
| Sleeve Width (imperial) | 1.75 in |
| Sleeve Width (metric) | 44.45 mm |
| Smart Cell | Yes |
| Trade Name | PermaSleeve |
| Vertical Repeat (imperial) | 0.75 in |
| Vertical Repeat (metric) | 19.05 mm |
| Web Width (imperial) | 2.25 in |
| Web Width (metric) | 57.15 mm |
| Width (imperial) | 1.75 in |
| Width (metric) | 44.45 mm |
| Wire Diameter Range (imperial) | 0.063 in to 0.11 in |
| Wire Diameter Range (metric) | 1.60 mm to 2.79 mm |
| Wire Gauge Range | 20 AWG - 16 AWG |
| CA Prop 65 Label Warning | WARNING: Cancer - www.P65warnings.ca.gov |
| CA Prop 65 Labeled? | Y |
| Contains CA PROP 65 Substance | Yes Contains-Label required |
| Contains CA PROP 65 Substance (Y/N) | Y |
| Contains CA PROP 65 Warning Type | Cancer |
| Contains Heavy Metal(s) | Unavailable |
| EU RoHS Compliance | Pass 2011/65/EU(Pass 2015/863) |
| EU RoHS Compliant | Yes |
| SDS Safety Data Sheet required | No = MSDS/SDS is not required |
