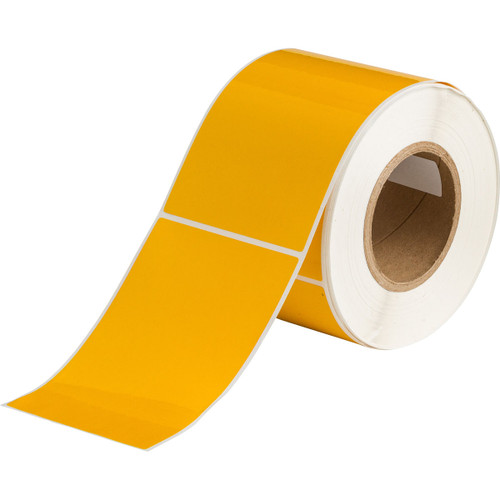

This B-423Y material is ideal for use in component identification, barcode label and rating plates.
- Glossy yellow finish with permanent acrylic is thermal transfer printable
- UL recognized
- Service temperature of -94 to 230° F (-70 to 110° C)
- A ribbon is required to print this material. Use Part Number IP-R6007 for the BradyPrinter i5100 or BRADY IP® Series Label Printer; use R6007 for a different printer
Key Characteristics
| Part Number | THT-25-423-.5-YL |
| Product Number | 134041 |
| UPC | 754473913281 |
| UOM | Roll of 500 Labels |
| Brand Name | Brady |
Specifications
| Adhesive Type | Permanent Acrylic |
| Application | Barcode Labeling, Circuit Board Labeling, Component and Equipment Labeling, General Identification, Inventory and Inspection Labeling |
| Approval/Compliance (EMEA) | UL Recognised |
| Brady Material Number | B-423Y |
| Color | Yellow |
| Compatible Surface Types | High Surface Energy |
| Continuous or Die-cut | Die-cut |
| Core Diameter (imperial) | 3 in |
| Core Diameter (metric) | 76.20 mm |
| Corner Type | Rounded |
| Dimensions (imperial) | 6 in H x 4 in W |
| Dimensions (metric) | 101,60 mm (W) x 152,40 mm (H) |
| Enables Industry Compliance (North America) | Halogen Free (DIN VDE 0472 Part 815) |
| Finish | Gloss |
| Format | IP Enabled |
| Height (imperial) | 6 in |
| Height (metric) | 152.40 mm |
| Indoor or Outdoor Use | Outdoor Use |
| Industry | Buildings identification, Chemical, Construction, Education, Electrical, Electronics, Energy utilities, Government, Healthcare, ICT, Laboratory, Manufacturing, Process, Warehouse & logistics |
| Industry Compliance UL | UL969A |
| Lab Environment | Freezer, Autoclave |
| Label Properties | Aggressive Adhesive, Harsh Environment, Heat Resistant, Permanent Adhesive |
| Label/Tape Size (imperial) | 6 in H x 4 in W |
| Label/Tape Size (metric) | 152.40 mm H x 101.60 mm W |
| Material | Polyester |
| Material Properties | Halogen-free |
| Material Type | Polyester |
| Maximum Service Temperature (°C) | 110 °C |
| Maximum Service Temperature (°F) | 230 °F |
| Minimum Service Temperature (°C) | -70 °C |
| Minimum Service Temperature (°F) | -94 °F |
| Performance Characteristics | Abrasion resistance, Fuel/Oil resistance, High heat resistance, Low temperature resistance |
| Primary Noun, Basic Function.1 | Label |
| Print Technology | Thermal Transfer |
| Printer Compatibility | BBP81, i5100, i6100, i7100, i7500, PR Plus, IP Series, THT 3 in Core Printers |
| Printer and Label Applications | General Identification |
| Printer supply or Pre-printed | Printer supply |
| Quantity per Roll | 500 |
| Quantity per Row | 1 |
| Recommended Ribbon | i75-R6007, IP-R6007, R6007 |
| Recommended Ribbon Series | R4900, R6000HF, R6200 |
| Resistance Properties | Abrasion-resistant, Chemical-resistant, Corrosion-resistant, Humidity-resistant, UV-resistant, Weather-resistant |
| Ribbon Series | R6000HF |
| SAP B-Number | B-423Y |
| SAP Local Description | THT-25-423-.5-YL |
| Service Temperature Range (°C) | -70 °C - 110 °C |
| Service Temperature Range (°F) | -94 °F - 230 °F |
| Shape | Rectangle |
| Smart Cell | No |
| Surface | For smooth surfaces |
| Thickness (imperial) | 0.0034 in |
| Thickness (metric) | 0.086 mm |
| Total Quantity | 500 |
| Trade Name | WorkHorse |
| Vertical Repeat (imperial) | 6.125 in |
| Vertical Repeat (metric) | 155.58 mm |
| Web Width (imperial) | 4.2 in |
| Web Width (metric) | 106.68 mm |
| Width (imperial) | 4 in |
| Width (metric) | 101.60 mm |
Brady B-423 Glossy White Polyester Label Data Sheet.pdf
https://www.midwestbarcodingsolutions.com/content/product_downloads/brady/Brady B-423 Glossy White Polyester Label Data Sheet.pdf
null
null
null
null
null
null
null
null
MFG Part Number
THT-25-423-.5-YL
Product Type
Label
Print Method
Thermal Transfer
Label Width
4"
Label Height
6"
Core Size
3" Core
Color
Yellow
Labels Per Roll
500
Format
Roll
Finish
Gloss
Labels Across
1
Adhesive
Permanent Acrylic
Material
Polyester
Sold By
Roll of 500 Labels
Roll Weight
1
Case Quantity
1
Case Weight
2
Compatible Printers
BBP®81 Label Printer, BradyPrinter i5100 Industrial Label Printer, BradyPrinter i7100 Industrial Label Printer, BradyPrinter PR Plus Series Label Printer, IP® Series Printer, THT 3 Inch Core Printers
Application
Barcode Labeling, Circuit Board Labeling, Component and Equipment Labeling, General Identification, Inventory and Inspection Labeling
Product Family
BradyBondz Barcode and Solar Panel
