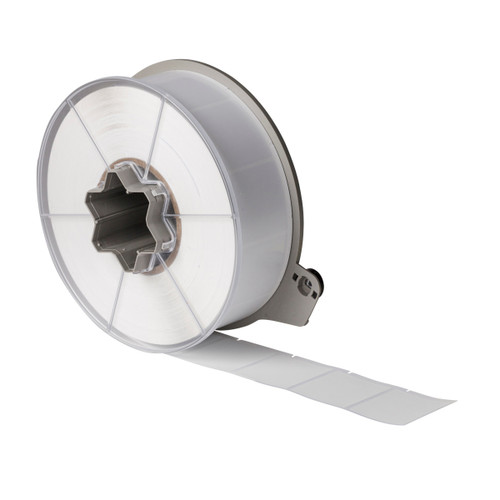

Paper Labels with Permanent Rubber Adhesive (B-424) provide good contrast and smear resistance for thermal transfer and barcode printing applications.
| Part Number | A55-13-424 |
| Product Number | 151834 |
| UPC | 888434554685 |
| UOM | Roll of 3000 Labels |
| Brand Name | Brady |
| Adhesive Type | Permanent Rubber Based |
| Application | Barcode Labeling, Electrical Labeling, General Identification |
| Auto-apply Compatible | Yes |
| Brady Material Number | B-424 |
| Color | White |
| Compatible Surface Types | Low Surface Energy |
| Continuous or Die-cut | Die-cut |
| Core Diameter (imperial) | 3 in |
| Core Diameter (metric) | 76.20 mm |
| Corner Type | Rounded |
| Dimensions (imperial) | 2 in H x 2 in W |
| Dimensions (metric) | 50,80 mm (W) x 50,80 mm (H) |
| Enables Industry Compliance (North America) | ASTM D 1000 |
| Finish | Matte |
| Height (imperial) | 2 in |
| Height (metric) | 50.80 mm |
| Indoor or Outdoor Use | Indoor Use |
| Industry | Education, Government, Healthcare, Laboratory, Manufacturing, Pulp & paper, Tourism & recreation, Warehouse & logistics |
| Lab Environment | Freezer |
| Label Properties | Permanent Adhesive |
| Label/Tape Size (imperial) | 2 in H x 2 in W |
| Label/Tape Size (metric) | 50.80 mm H x 50.80 mm W |
| Material | Paper |
| Material Type | Paper |
| Maximum Service Temperature (°C) | 180 °C |
| Maximum Service Temperature (°F) | 365 °F |
| Maximum Wire Diameter (imperial) | 0.25 in |
| Maximum Wire Diameter (metric) | 6.35 mm |
| Minimum Service Temperature (°C) | -40 °C |
| Minimum Service Temperature (°F) | -40 °F |
| Minimum Wire Diameter (imperial) | 0.06 in |
| Minimum Wire Diameter (metric) | 1.52 mm |
| Primary Noun, Basic Function.1 | Label |
| Print Technology | Thermal Transfer |
| Printer Compatibility | A5500 |
| Printer and Label Applications | Wire & Cable |
| Printer supply or Pre-printed | Printer supply |
| Quantity per Roll | 3000 |
| Quantity per Row | 1 |
| Recommended Ribbon | SSR4302, SSR6102 |
| Recommended Ribbon Series | R4300, R6100 |
| Resistance Properties | Abrasion-resistant, Humidity-resistant, Smear-resistant, UV-resistant |
| Ribbon Series | R4300, R6100 |
| SAP B-Number | B-424 |
| SAP Local Description | A55-13-424 |
| Service Temperature Range (°C) | -40 °C - 180 °C |
| Service Temperature Range (°F) | -40 °F - 365 °F |
| Shape | Rectangle |
| Smart Cell | Yes |
| Surface | For smooth surfaces |
| Thickness (imperial) | 0.0035 in |
| Thickness (metric) | 0.089 mm |
| Total Quantity | 3000 |
| Vertical Repeat (imperial) | 2.125 in |
| Vertical Repeat (metric) | 53.98 mm |
| Web Width (imperial) | 2.29 in |
| Web Width (metric) | 58.17 mm |
| Width (imperial) | 2 in |
| Width (metric) | 50.80 mm |
| Wire Diameter Range (imperial) | 0.06 in to 0.25 in |
| Wire Diameter Range (metric) | 1.52 mm to 6.35 mm |
| Contains CA PROP 65 Substance | Yes Contains-Label not req. |
| Contains CA PROP 65 Substance (Y/N) | N |
| Contains Heavy Metal(s) | Unavailable |
| EU RoHS Compliance | Pass 2011/65/EU(Pass 2015/863) |
| EU RoHS Compliant | Yes |
| SDS Safety Data Sheet required | No = MSDS/SDS is not required |
