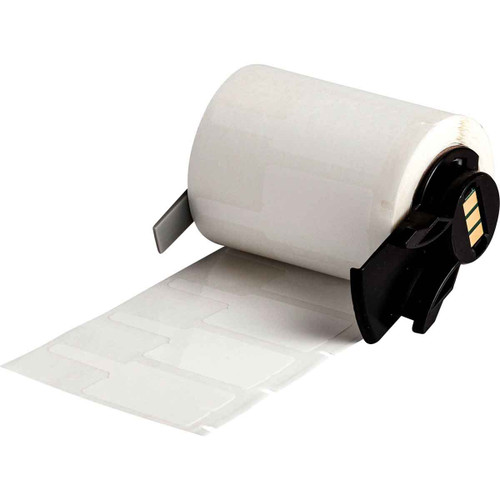

The B8425 is a white polypropylene designed for general purpose label, asset identification, rating plate, and warning/instructional labelling.
| Part Number | M6-1-8425-FP |
| Product Number | 174382 |
| UPC | 888434601976 |
| UOM | Roll of 250 Labels |
| Brand Name | Brady |
| Adhesive Type | Permanent Acrylic |
| Application | Data and Telecommunications Labeling, Electrical Labeling, Wire and Cable Labeling, General Identification |
| Approval/Compliance (EMEA) | UL Recognised |
| Brady Material Number | B-8425 |
| Color | White |
| Compatible Surface Types | High Surface Energy |
| Continuous or Die-cut | Die-cut |
| Corner Type | Rounded |
| Dimensions (imperial) | 0.788 in H x 1.18 in W |
| Dimensions (metric) | 29,97 mm (W) x 20,02 mm (H) |
| Enables Industry Compliance (North America) | ASTM D 1000, ASTM D 2979, ASTM G 155, UL Recognized |
| Finish | Gloss |
| Height (imperial) | 0.788 in |
| Height (metric) | 20.02 mm |
| Indoor or Outdoor Use | Indoor Use |
| Industry Compliance UL | UL969 |
| Label Properties | Aggressive Adhesive, Permanent Adhesive |
| Label/Tape Size (imperial) | 0.788 in H x 1.18 in W |
| Label/Tape Size (metric) | 20.02 mm H x 29.97 mm W |
| Material | Polypropylene |
| Material Type | Polypropylene |
| Maximum Service Temperature (°C) | 90 °C |
| Maximum Service Temperature (°F) | 194 °F |
| Minimum Service Temperature (°C) | -70 °C |
| Minimum Service Temperature (°F) | -94 °F |
| Primary Noun, Basic Function.1 | Label |
| Print Technology | Thermal Transfer |
| Printer Compatibility | M610, M611, M710 (with media adapter), BMP61, BMP71 (with media adapter) |
| Printer and Label Applications | General Identification, Wire & Cable |
| Printer supply or Pre-printed | Printer supply |
| Quantity per Roll | 250 |
| Quantity per Row | 1 |
| Recommended Ribbon | M61-R6010, M7-R6000 |
| Recommended Ribbon Series | R4400, R6000HF |
| Resistance Properties | Abrasion-resistant, Chemical-resistant, Humidity-resistant, UV-resistant, Weather-resistant |
| Ribbon Series | R6000HF, R4400 |
| SAP B-Number | B-8425 |
| SAP Local Description | M6-1-8425-FP |
| Service Temperature Range (°C) | -70 °C - 90 °C |
| Service Temperature Range (°F) | -94 °F - 194 °F |
| Shape | P |
| Smart Cell | Yes |
| Thickness (imperial) | 0.0031 in |
| Thickness (metric) | 0.079 mm |
| Total Quantity | 250 |
| Vertical Repeat (imperial) | 0.925 in |
| Vertical Repeat (metric) | 23.50 mm |
| Web Width (imperial) | 2.25 in |
| Web Width (metric) | 57.15 mm |
| Width (imperial) | 1.18 in |
| Width (metric) | 29.97 mm |
| Contains CA PROP 65 Substance | Yes Contains-Label not req. |
| Contains CA PROP 65 Substance (Y/N) | N |
| Contains Heavy Metal(s) | No - Does not contain |
| EU RoHS Compliance | Pass 2011/65/EU(Pass 2015/863) |
| EU RoHS Compliant | Yes |
| SDS Safety Data Sheet required | No = MSDS/SDS is not required |
