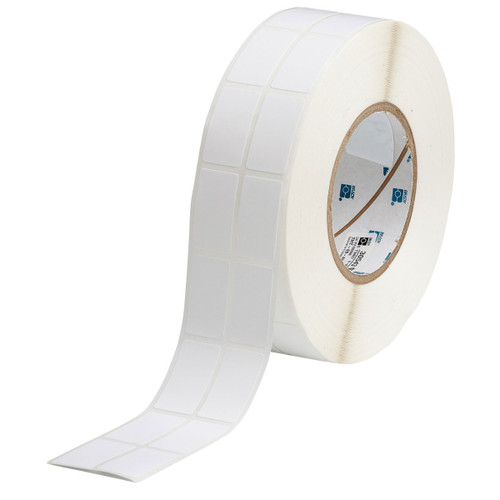

Nylon Cloth (B-499) wrap-around labels are highly pliable to conform to tightly curved surfaces such as wire and cable.
| Part Number | THT-69-499-3 |
| Product Number | 30543 |
| UPC | 662820305439 |
| UOM | Roll of 3000 Labels |
| Brand Name | Brady |
| Adhesive Type | Permanent Acrylic |
| Application | Component and Equipment Labeling, Electrical Labeling, General Identification, Warehouse Marking, Wire and Cable Labeling |
| Approval/Compliance (EMEA) | UL Recognised, CSA Accepted, Halogen Free (DIN VDE 0472/part 815) Approvals are for White material only |
| Brady Material Number | B-499 |
| Color | White |
| Compatible Surface Types | High Surface Energy |
| Continuous or Die-cut | Die-cut |
| Core Diameter (imperial) | 3 in |
| Core Diameter (metric) | 76.20 mm |
| Corner Type | Rounded |
| Dimensions (imperial) | 1.437 in H x 0.8 in W |
| Dimensions (metric) | 20,32 mm (W) x 36,50 mm (H) |
| Enables Industry Compliance (North America) | Halogen Free (DIN VDE 0472 Part 815) |
| Finish | Matte |
| Format | IP Enabled |
| Height (imperial) | 1.437 in |
| Height (metric) | 36.50 mm |
| Horizontal Repeat (imperial) | 0.9 in |
| Horizontal Repeat (metric) | 22.86 mm |
| Indoor or Outdoor Use | Indoor Use |
| Industry | Electrical, Healthcare, Laboratory, Voice & data communication |
| Industry Compliance UL | UL969 |
| Lab Application | Conical Tubes, General Laboratory Identification, Large Tubes, Vials |
| Lab Environment | Autoclave, Freezer, Liquid Nitrogen |
| Label Properties | Aggressive Adhesive, Low Temperature, Permanent Adhesive |
| Label/Tape Size (imperial) | 1.437 in H x 0.8 in W |
| Label/Tape Size (metric) | 36.50 mm H x 20.32 mm W |
| Material | Nylon Cloth |
| Material Properties | Autoclavable, Cryogenic storage, Halogen-free |
| Material Type | Nylon |
| Maximum Service Temperature (°C) | 90 °C |
| Maximum Service Temperature (°F) | 194 °F |
| Maximum Wire Diameter (imperial) | 0.46 in |
| Maximum Wire Diameter (metric) | 11.68 mm |
| Minimum Service Temperature (°C) | -40 °C |
| Minimum Service Temperature (°F) | -40 °F |
| Minimum Wire Diameter (imperial) | 0.18 in |
| Minimum Wire Diameter (metric) | 4.57 mm |
| Primary Noun, Basic Function.1 | Label |
| Print Technology | Thermal Transfer |
| Printer Compatibility | BBP81, i5100, i6100, i7100, i7500, PR Plus, IP Series, THT 3 in Core Printers |
| Printer and Label Applications | Wire & Cable |
| Printer supply or Pre-printed | Printer supply |
| Quantity per Roll | 3000 |
| Quantity per Row | 2 |
| Recommended Ribbon | i75-R4302, IP-R4302, R4302 |
| Recommended Ribbon Series | R4300, R4500, R4900, R6000HF, R6200 |
| Resistance Properties | Abrasion-resistant, Chemical-resistant, Humidity-resistant, Low Temperature-resistant, UV-resistant, Weather-resistant |
| Ribbon Series | R4900 |
| SAP B-Number | B-499 |
| SAP Local Description | THT-69-499-3 |
| Service Temperature Range (°C) | -40 °C - 90 °C |
| Service Temperature Range (°F) | -40 °F - 194 °F |
| Shape | Rectangle |
| Smart Cell | No |
| Surface | For smooth, textured/rough or Highly textured/Low surface energy surfaces |
| Thickness (imperial) | 0.0065 in |
| Thickness (metric) | 0.166 mm |
| Total Quantity | 3000 |
| Vertical Repeat (imperial) | 1.54 in |
| Vertical Repeat (metric) | 39.12 mm |
| Vial/Tube Size (metric) | 4 mL |
| Web Width (imperial) | 1.9 in |
| Web Width (metric) | 48.26 mm |
| Width (imperial) | 0.8 in |
| Width (metric) | 20.32 mm |
| Wire Diameter Range (imperial) | 0.18 in to 0.46 in |
| Wire Diameter Range (metric) | 4.57 mm to 11.68 mm |
| Contains CA PROP 65 Substance | Yes Contains-Label not req. |
| Contains CA PROP 65 Substance (Y/N) | N |
| Contains Heavy Metal(s) | No - Does not contain |
| EU RoHS Compliance | Pass 2011/65/EU(Pass 2015/863) |
| EU RoHS Compliant | Yes |
| SDS Safety Data Sheet required | No = MSDS/SDS is not required |
