WCMTB-T27B6ABE2-A6 | Zebra TC27 Mobile Computer (1D / 2D) - Zebra Mobile Computer & Handheld Scanner

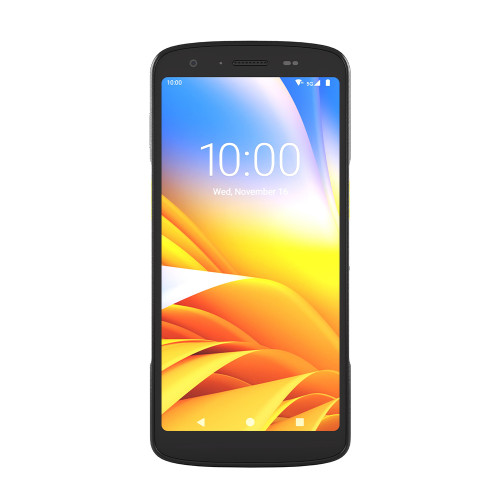

WCMTB-T27B6ABE2-A6 is a Zebra TC27 Android mobile computer with 5G cellular, a 6.0 in. touch screen and a built-in barcode scanner, designed by Zebra for small and mid-size businesses with workers on the road. It is the third generation of Zebra's TC2x series, following the Zebra TC26 and the earlier TC25, and it is sealed to IP68 with a removable battery.
It combines a phone, a scanner and GPS in one device, so drivers and field staff can call, scan and capture proof of delivery from one handheld. The TC27 is the 5G model; the TC22 is the same device without cellular. Zebra sells the TC27 in several configurations, so the details below are specific to this part number. Midwest Barcoding Solutions supplies Zebra mobile computers to businesses across the Midwest, and we're glad to help you confirm this is the right build before you order.
What's in This Configuration: WCMTB-T27B6ABE2-A6
- Connectivity: Bluetooth, Wi-Fi (802.11), 5G, NFC
- Scan range: Short Range
- Barcode reading: 1D / 2D
- Memory: 6GB / 64GB
- Battery: Extended Battery
- Operating system: Android w/ GMS
Zebra TC27 Mobile Computer Specs
These are the core specs of the Zebra TC27. They come standard on every TC27 configuration unless noted.
- Cellular: 5G and 4G LTE with one nano SIM and one eSIM, cellular voice and VoLTE calling, plus support for private 5G networks and CBRS private LTE in the US
- GPS: dual-band GNSS (GPS, GLONASS, Galileo, BeiDou and QZSS)
- Display: 6.0 in. Full HD+ color touch screen (1080 x 2160), 450 nits, Corning Gorilla Glass, works with bare or lightly gloved fingers
- Processor: Qualcomm 5430 hex-core, 2.1 GHz
- Wireless: Wi-Fi 6, Bluetooth 5.2 and NFC, with Apple VAS and Google Smart Tap support. Wi-Fi 6E requires a Zebra Mobility DNA Enterprise license.
- Drop rating: 5 ft. to concrete with the protective boot, or 4.5 ft. to tile over concrete without it, across the operating temperature range, per MIL-STD-810H
- Tumble rating: 500 tumbles at 1.6 ft., or at 3.3 ft. with the boot
- Sealing: IP68 and IP65
- Operating temperature: 14°F to 122°F
- Cameras: 16 MP rear camera, 5 MP front camera
- Expansion: microSD card slot, up to 2 TB
- Size: 6.5 in. long, 3.0 in. wide, 0.49 in. deep
How Do You Know Which Zebra TC27 Is Right for You?
Every Zebra TC27 shares the same core specs. What changes from one part number to the next is how it's configured. These are the choices to make:
- TC27 or TC22: if your workers stay inside your building on Wi-Fi, the Zebra TC22 is the same device without cellular.
- Short range or long range scanning: the SE4710 is the standard scan engine for everyday scanning at close range. The SE55 is Zebra's advanced range scan engine, for reading barcodes both in hand and at a distance.
- Memory: 6 GB RAM with 64 GB storage, or 8 GB with 128 GB.
- Battery: the standard battery is 3,800 mAh and the extended battery is 5,200 mAh. A 3,800 mAh BLE battery works with Zebra's Device Tracker, a separate license, to find a lost device.
- 2-pin or 8-pin rear connector: TC27 models come with a 2-pin or 8-pin rear connector. Check which one your part number has before buying cradles and accessories, so they match.
- Need a more durable device? The TC27 is rated for 5 ft. drops with its boot and works down to 14°F. If your team needs more than that, ask us about Zebra's more rugged models.
- TC27 or TC201: the Zebra TC201 is the next generation of the TC2x series and also comes in a 5G version. Zebra says it works with most TC22 and TC27 accessories, including batteries and charging cradles, and it adds Wi-Fi 7, a 6 ft. drop rating and operation down to -4°F.
Once you know what you need, head to our Zebra TC22 and TC27 mobile computers page and use the filters in the left-hand navigation to narrow the list to the device that matches.
Questions? Confused? Contact the Midwest Barcoding Solutions Support Team
Batteries, Cradles and Accessories for the Zebra TC27
- Batteries: standard 3,800 mAh, extended 5,200 mAh and BLE 3,800 mAh options, all user removable.
- Charging: single-slot and multi-slot cradles for the counter or the backroom.
- Trigger handle and arm mount: a snap-on trigger handle for heavy scanning, and a wearable arm mount for hands-free work.
- Protective boot, holster and hand strap: the boot raises the drop rating to 5 ft. to concrete, and the holster and hand strap make it easier to carry on the road.
- RFID sleds: Zebra's RFD40 and RFD90 RFID sleds add RFID reading for inventory counts.
Shop mobile computer accessories.
Zebra TC27 Industries and Applications
Zebra builds the TC27 for field operations, retail, hospitality, and warehouse and distribution work.
- Field operations: courier and last mile delivery, direct store delivery, payment on delivery, field service, site security and facilities management.
- Retail: price checks and item lookup, mobile point of sale, inventory, and shipping and receiving.
- Hospitality: event ticketing and point of sale.
- Warehouse and distribution: sortation, loading and unloading, and click-and-collect orders.
Questions, Fleet Pricing or Help Choosing a Configuration?
We're happy to help. A real person at Midwest Barcoding Solutions will work through it with you before you order.
- Call: 855-650-6540
- Chat: open the chat window on this page for a quick answer
- Talk to a pro: send us your question and we'll get back to you
- Outfitting a team, or adding batteries and cradles? Request a quote and we'll see what we can do on price. No order is too small to ask.
For large projects and corporate pricing on the Zebra WCMTB-T27B6ABE2-A6, visit the link below:
Product Family
TC27
MFG Part Number
WCMTB-T27B6ABE2-A6
Product Type
Mobile Computer
Connectivity
Bluetooth, Wi-Fi (802.11), 5G, NFC
Code Type
1D / 2D
Scanner Range
Short Range
Scanner Type
Imager
Keypad
Virtual Keypad
Display
6" Display
Battery
Extended Battery
Form Factor
Handheld
Operating System
Android w/ GMS
Flash Memory
6GB / 64GB
Durability
Commercial / Retail
Geographical Availability
Rest of World
Zebra TC22 & TC27 Mobile Computer Spec Sheet.pdf
https://www.midwestbarcodingsolutions.com/content/product_downloads/zebra/Zebra TC22 & TC27 Mobile Computer Spec Sheet.pdf
Zebra TC22 & TC27 Accessory Guide.pdf
https://www.midwestbarcodingsolutions.com/content/product_downloads/zebra/Zebra TC22 & TC27 Accessory Guide.pdf
